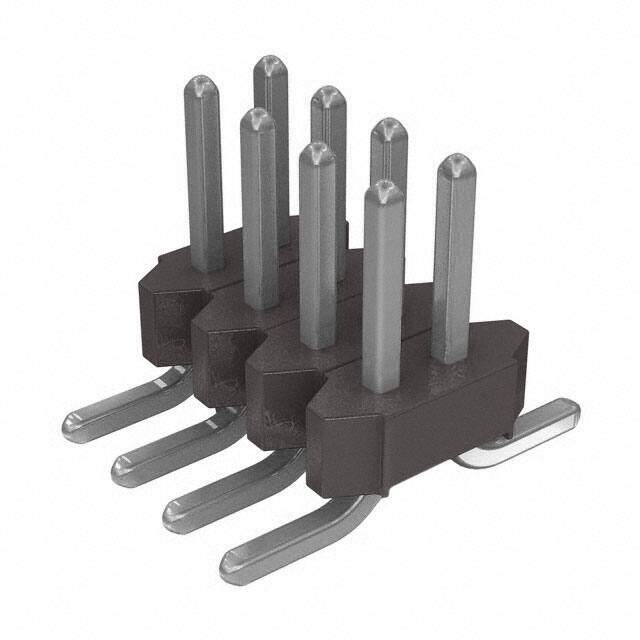

0713085404 image
Favorite
0713085404 image
Favorite

0713085404

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD C-Grid? Tube
PDF
/
Inventory: 9935
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Contact Material Copper Alloy
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled

Technical

Packaging Bulk
Series C-Grid 71308
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Breakaway
Number of Positions 4
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Total Number of Contacts 4
Insulation Height 0.090 2.29mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Unshrouded
Contact Length - Mating 0.240 6.10mm

Dimensions

Contact Finish Thickness - Mating 59.0μin 1.50μm
Contact Finish Thickness - Post 59.0μin 1.50μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
