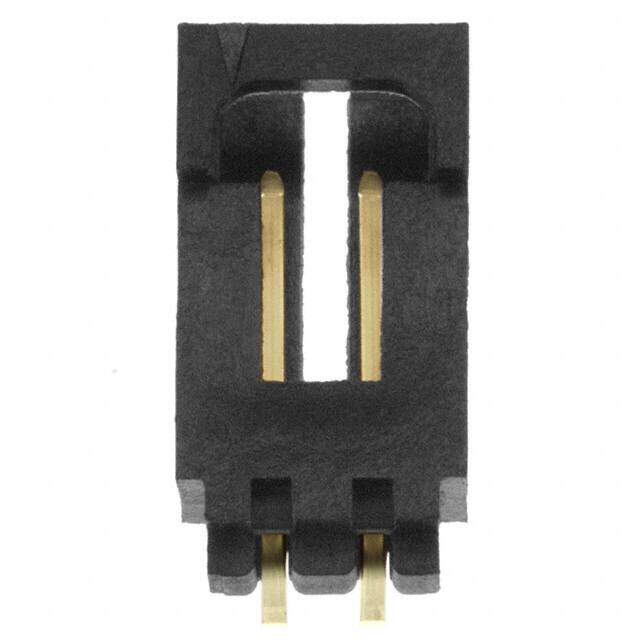

0705530106

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole SL? Tube
PDF
/
Buying Options
Total Price: USD $1.54
Unit Price: USD $1.54
≥1 USD $1.54
≥10 USD $1.30856
≥100 USD $1.080816
≥500 USD $0.853248
≥1000 USD $0.756545
≥3000 USD $0.739482
Inventory: 47462
Minimum: 1
-
+

Technical Details

Technical

Voltage - Rated 250V
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.215 5.45mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SL 70553
Packaging Tube
Operating Temperature -40°C~105°C

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 74.8μin 1.90μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant

Physical

Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 6 Weeks
