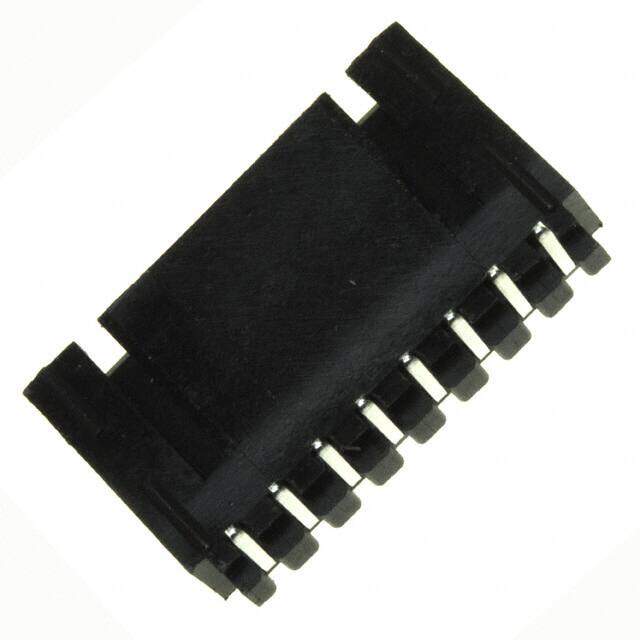

0705530042

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole SL? Tube
PDF
/
Buying Options
Total Price: USD $2.45
Unit Price: USD $2.45163
≥1 USD $2.45163
≥10 USD $2.312865
≥100 USD $2.181942
≥500 USD $2.05843
≥1000 USD $1.941925
Inventory: 5464
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 150.0μin 3.81μm

Technical

Contact Length - Mating 0.240 6.10mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.215 5.45mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Holder
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series SL 70553
Packaging Tube
Operating Temperature -40°C~105°C

Physical

Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 5 Weeks
