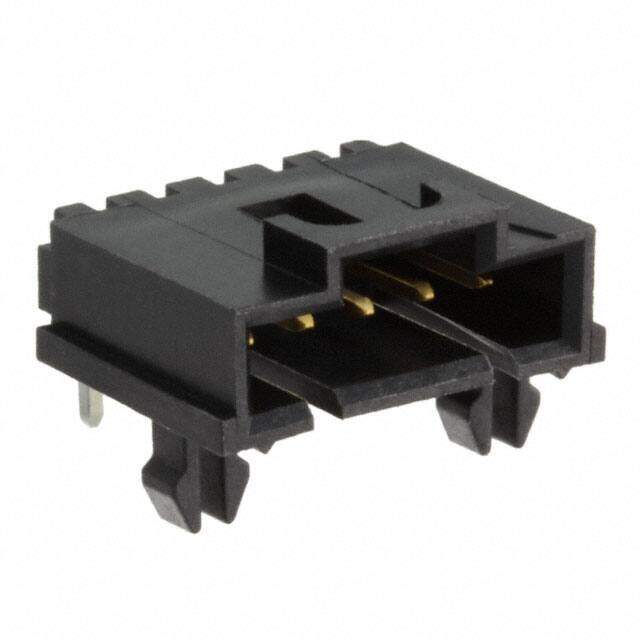

0705510074
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole SL? Tube
PDF
/
Buying Options
Total Price: USD $1.94
Unit Price: USD $1.9448
≥1 USD $1.9448
≥10 USD $1.65968
≥100 USD $1.37104
≥500 USD $1.082426
≥1000 USD $0.959754
Inventory: 3755
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyester, Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series SL 70551
JESD-609 Code e3
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 5
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Voltage - Rated 250V
Additional Feature POLARIZED
Fastening Type Latch Holder
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 0.215 5.45mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 74.8μin 1.90μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
