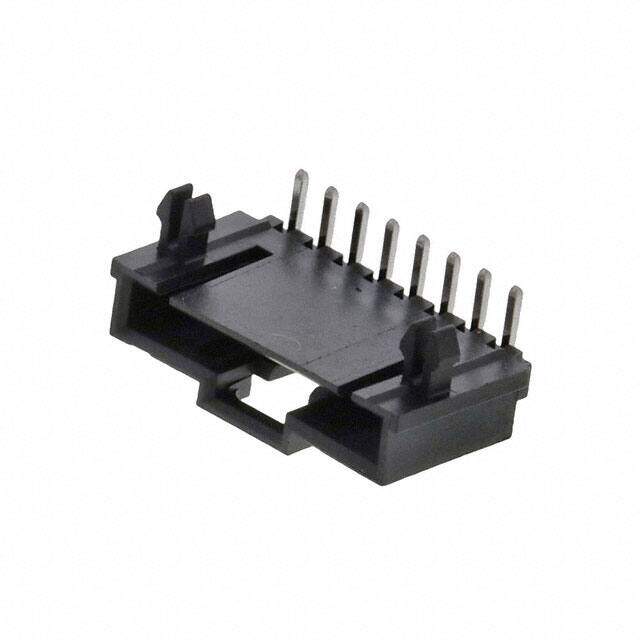

0705510007
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole SL? Tube
PDF
/
Buying Options
Total Price: USD $1.61
Unit Price: USD $1.606132
≥1 USD $1.606132
≥10 USD $1.515223
≥100 USD $1.429453
≥500 USD $1.348544
≥1000 USD $1.27221
Inventory: 948
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 150.0μin 3.81μm
Technical
UL Flammability Code 94V-0
Contact Length - Mating 0.240 6.10mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.215 5.45mm
Terminal Pitch 2.54mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Latch Holder
Additional Feature POLARIZED, SHROUDED
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
JESD-609 Code e3
Series SL 70551
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 5 Weeks
