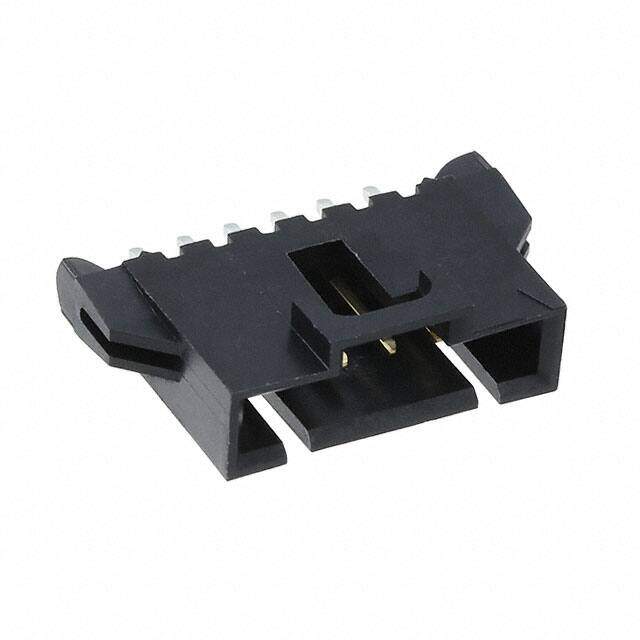

0705450075 image
Favorite
0705450075 image
Favorite

0705450075

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole SL? Tube
PDF
/
Buying Options
Total Price: USD $1.91
Unit Price: USD $1.9096
≥1 USD $1.9096
≥10 USD $1.623406
≥100 USD $1.341041
≥500 USD $1.058702
≥1000 USD $0.938722
Inventory: 3814
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 74.8μin 1.90μm
Contact Finish Thickness - Mating 30.0μin 0.76μm

Technical

Overall Contact Length 0.470 11.94mm
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.465 11.80mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Holder
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 6
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
Series SL 70545
Packaging Tube
Operating Temperature -40°C~105°C

Physical

Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 8 Weeks
