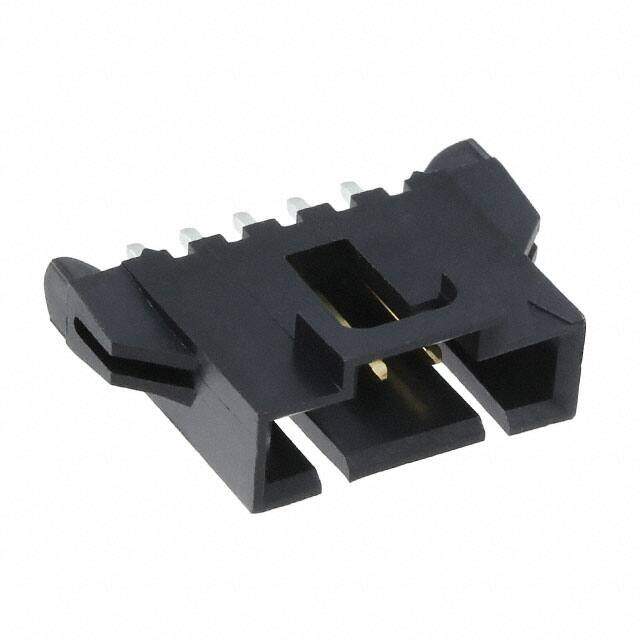

0705450074 image
Favorite
0705450074 image
Favorite

0705450074

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 5POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.93
Unit Price: USD $0.9328
≥1 USD $0.9328
≥10 USD $0.791666
≥100 USD $0.65391
≥500 USD $0.605915
Inventory: 1669
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester, Glass Filled

Technical

Operating Temperature -40°C~105°C
Packaging Tube
Series SL 70545
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 5
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Voltage - Rated 250V
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.465 11.80mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
Overall Contact Length 0.470 11.94mm

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 74.8μin 1.90μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
