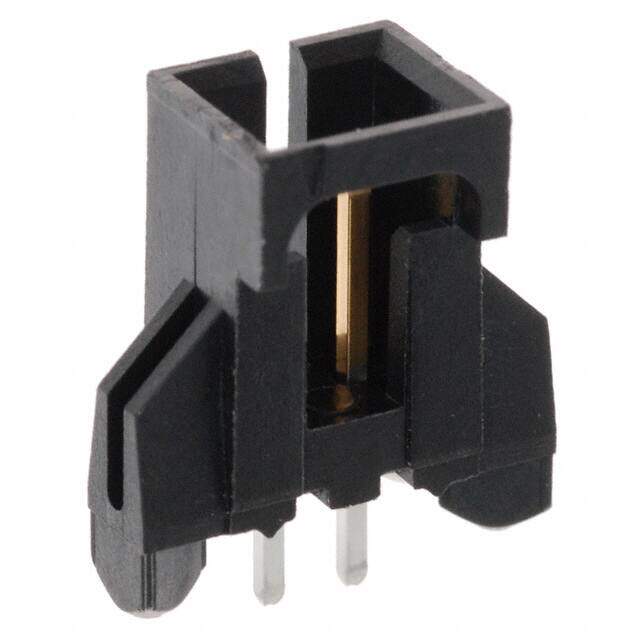

0705450036
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole SL? Tube
PDF
/
Buying Options
Total Price: USD $0.84
Unit Price: USD $0.836
≥1 USD $0.836
≥10 USD $0.692542
≥100 USD $0.577183
≥500 USD $0.461754
≥1000 USD $0.404034
≥3000 USD $0.38383
Inventory: 6243
Minimum: 1
-
+
Technical Details
Physical
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Series SL 70545
Overall Contact Length 0.470 11.94mm
UL Flammability Code 94V-0
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.465 11.80mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Holder
Additional Feature POLARIZED, SHROUDED
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Supply Chain
Factory Lead Time 9 Weeks
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 74.8μin 1.90μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
