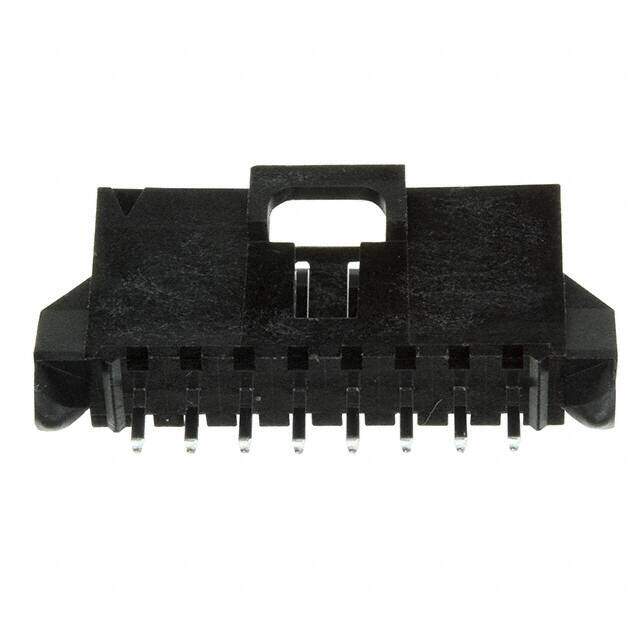

0705450007
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole SL? Tube
PDF
/
Buying Options
Total Price: USD $1.55
Unit Price: USD $1.5488
≥1 USD $1.5488
≥10 USD $1.320466
≥100 USD $1.090892
≥500 USD $0.861247
≥1000 USD $0.763638
≥3000 USD $0.746416
Inventory: 746
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester, Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Series SL 70545
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Voltage - Rated 250V
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Type Male Pin
Insulation Height 0.465 11.80mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.240 6.10mm
Overall Contact Length 0.470 11.94mm
Dimensions
Contact Finish Thickness - Mating 150.0μin 3.81μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
