0702871045
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

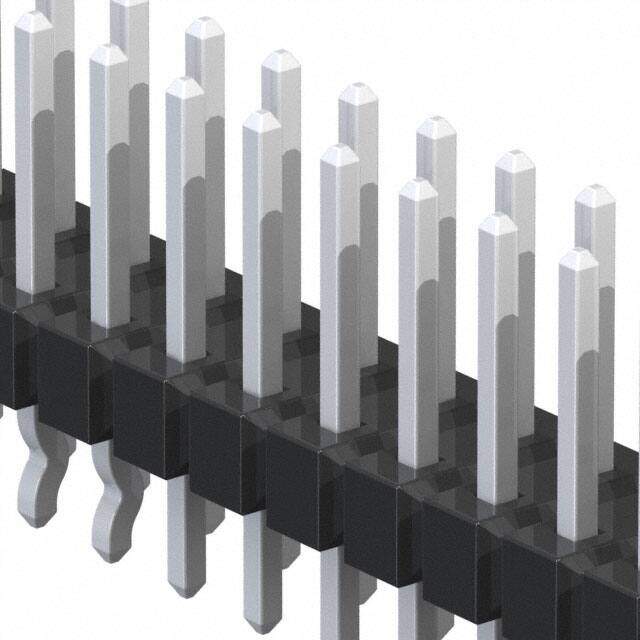

CONN HEADER VERT 94POS 2.54MM
PDF
/
Inventory: 3371
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 150.0μin 3.81μm
Length 119.38mm
Technical
Max Voltage Rating (DC) 250V
Number of Circuits 92
Overall Contact Length 0.455 11.56mm
Housing Color Black
Contact Length - Mating 0.240 6.10mm
Shrouding Unshrouded
Contact Length - Post 0.125 3.18mm
Row Spacing - Mating 0.100 (2.54mm)
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.090 2.29mm
Depth 5.08mm
Orientation Vertical
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Number of Rows 2
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Min Operating Temperature -40°C
Max Operating Temperature 120°C
Number of Positions 94
Connector Type Header, Breakaway
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series C-Grid 70287
Packaging Bulk
Physical
Housing Material Polymer
Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
