0559171830
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

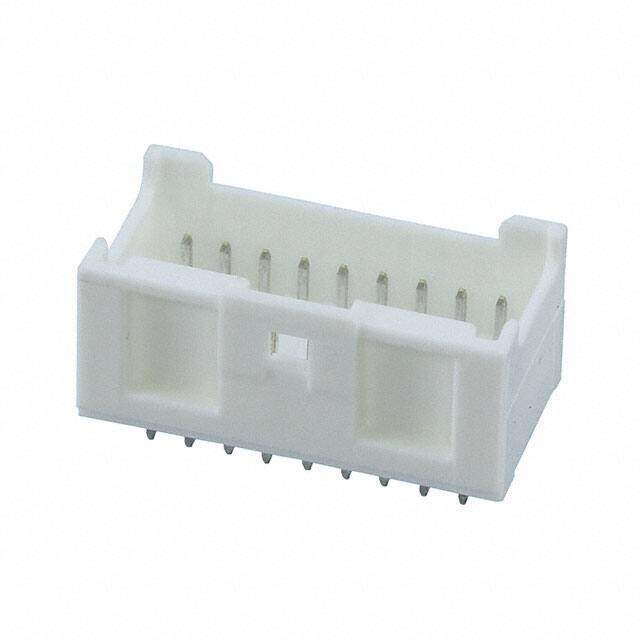

Conn Shrouded Header HDR 18 POS 2mm Solder ST Thru-Hole MicroClasp? Tray
PDF
/
Buying Options
Total Price: USD $1.11
Unit Price: USD $1.1088
≥1 USD $1.1088
≥10 USD $0.94424
≥100 USD $0.780234
≥500 USD $0.723026
Inventory: 6117
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 13.2mm
Technical
Overall Contact Length 0.366 9.30mm
Contact Length - Mating 0.150 3.81mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.197 (5.00mm)
Insulation Color Natural
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.384 9.75mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Holder
HTS Code 8536.69.40.40
Number of Rows 2
Applications General Purpose, Industrial, Medical
Number of Positions 18
Connector Type Header
ECCN Code EAR99
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series MicroClasp 55917
Packaging Tray
Physical
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 5 Weeks
