0559171230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

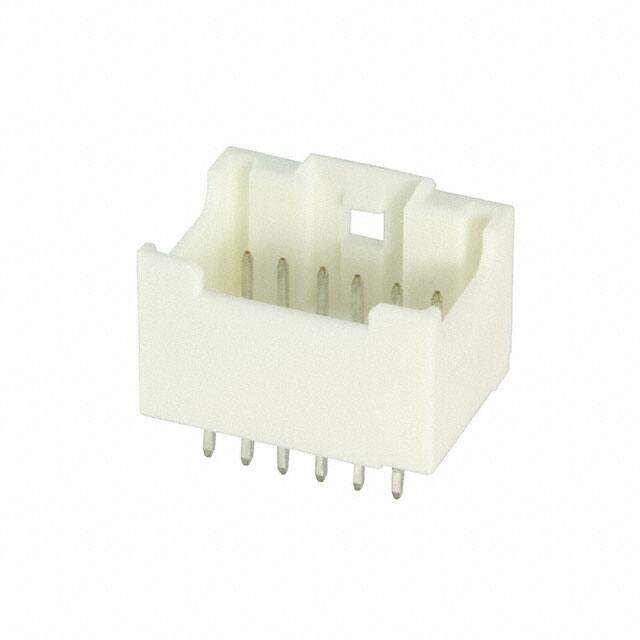

Conn Shrouded Header HDR 12 POS 2mm Solder ST Thru-Hole MicroClasp? Tray
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.88
≥1 USD $0.88
≥10 USD $0.7524
≥100 USD $0.621394
≥500 USD $0.575793
Inventory: 1099
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Packaging Tray
Series MicroClasp 55917
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 12
Applications General Purpose, Industrial, Medical
Number of Rows 2
Additional Feature MICROCLASP, SHROUDED
HTS Code 8536.69.40.40
Fastening Type Latch Holder
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 0.384 9.75mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Natural
Row Spacing - Mating 0.197 (5.00mm)
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.150 3.81mm
UL Flammability Code 94V-0
Overall Contact Length 0.366 9.30mm
Dimensions
Stack Height (Mating) 13.2mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
