0554600572
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

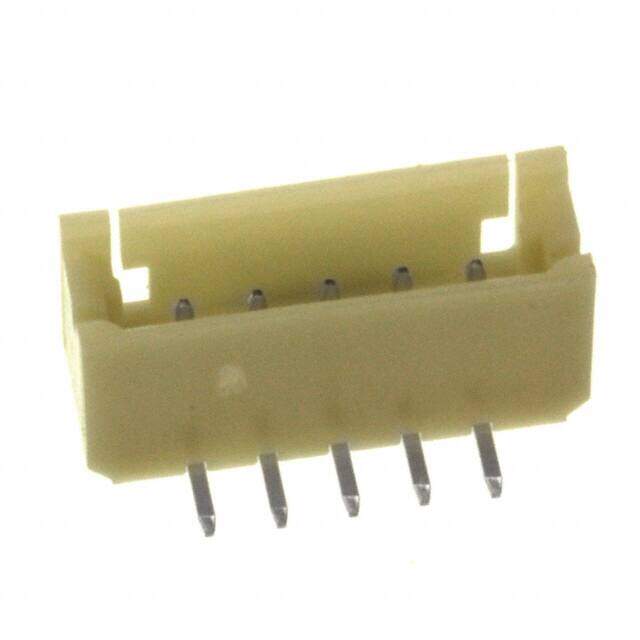

MOLEX 55460-0572Wire-To-Board Connector, Surface Mount, Header, 5 Contacts, 2 mm, Tin Plated Contacts
PDF
/
Inventory: 3869
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Shrouding Shrouded - 4 Wall
Insulation Color Natural
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.276 7.00mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Detent Lock
Number of Rows 1
Number of Positions 5
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Solder Retention
Series Mi II 55460
Packaging Tape & Reel (TR)
Physical
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Surface Mount
Contact Material Brass
Supply Chain
Factory Lead Time 28 Weeks
