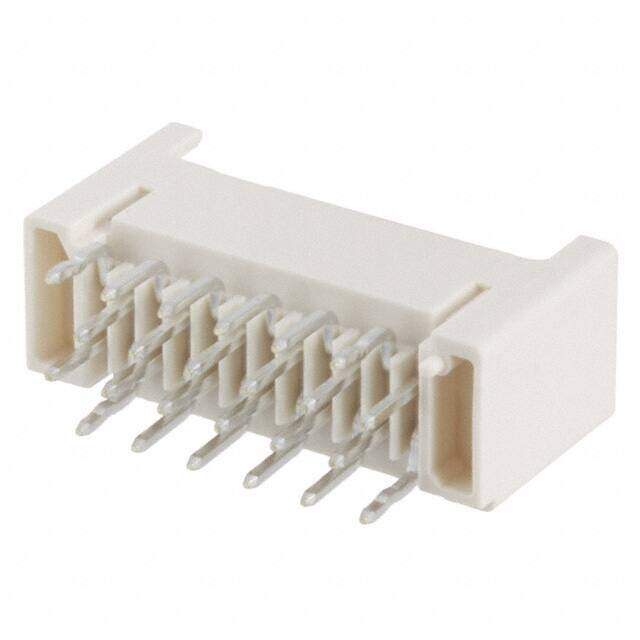

0554512470
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
MINISTR 2-ROW WAFER ASSY 24CKT
PDF
/
Inventory: 8816
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 9.8mm
Technical
Overall Contact Length 0.343 8.70mm
Contact Length - Mating 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.118 3.00mm
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Natural
Pitch - Mating 0.049 1.25mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.386 9.80mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Number of Rows 2
Number of Positions 24
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Board Guide
Series Mini Mi II 55451
Packaging Tray
Physical
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
