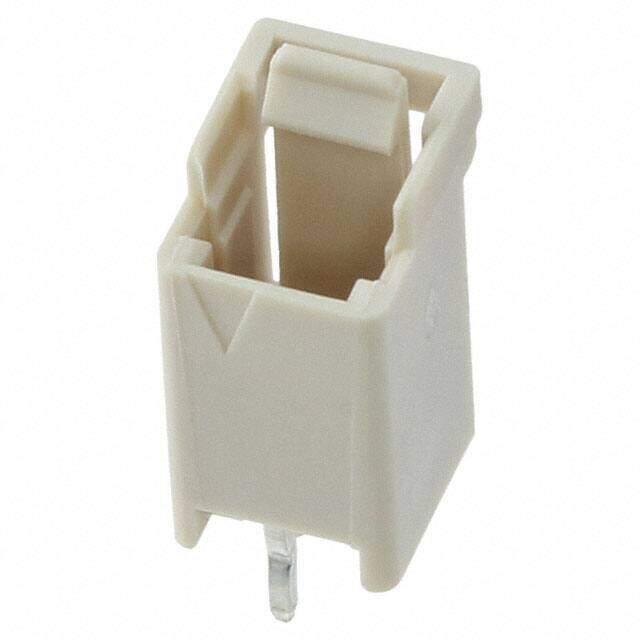

0554470270
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Wire to Board HDR 2 POS 1.25mm Solder ST Thru-Hole Mini Mi II? Tray
PDF
/
Inventory: 5053
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Technical
Packaging Tray
Series Mini Mi II 55447
JESD-609 Code e3
Feature Board Guide
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit, Solder
Connector Type Header
Number of Positions 2
Number of Rows 1
Additional Feature POLARIZED, SHROUDED
Fastening Type Latch Lock
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Insulation Height 0.303 7.70mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.049 1.25mm
Insulation Color Natural
Contact Length - Post 0.118 3.00mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.110 2.79mm
Overall Contact Length 0.323 8.20mm
Dimensions
Stack Height (Mating) 8.4mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
