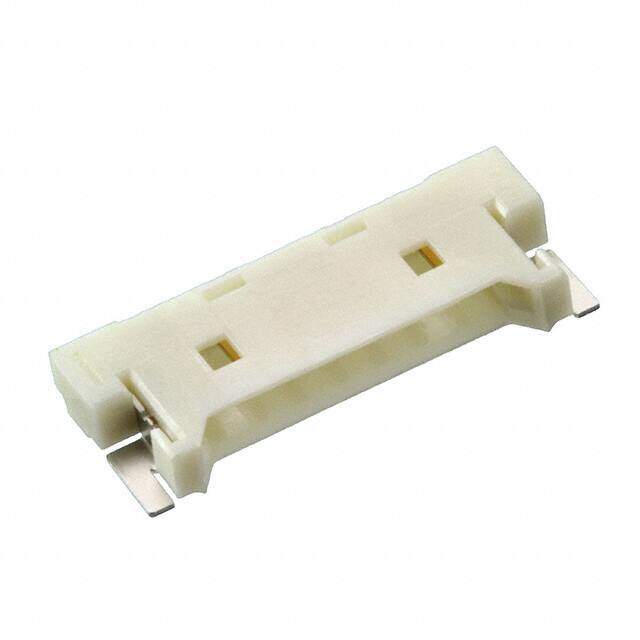

0537800790
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD R/A 7POS 1.25MM
PDF
/
Inventory: 4588
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 8.00μin 0.203μm
Technical
Contact Length - Mating 0.102 2.60mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Insulation Color Natural
Pitch - Mating 0.049 1.25mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.073 1.85mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Detent Lock
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 7
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Solder Retention
Series PanelMate 53780
Packaging Cut Tape (CT)
Physical
Insulation Material Polyphenylene Sulfide (PPS)
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Contact Material Phosphor Bronze
