0535170310
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

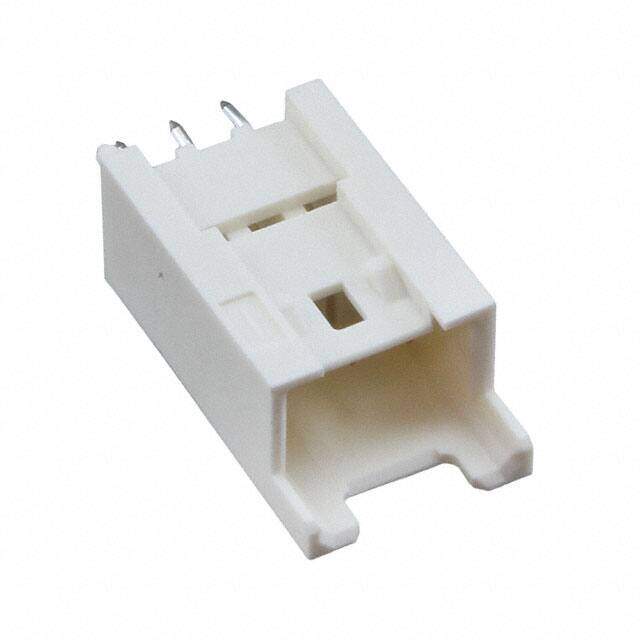

Conn Shrouded Header HDR 3 POS 2.5mm Solder ST Thru-Hole Mini-Lock? Tray
PDF
/
Inventory: 1863
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA), Nylon
Technical
Packaging Tray
Series Mini-Lock 53517
Feature Board Guide, Glow Wire Compliant
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header
Number of Positions 3
Applications General Purpose, Industrial
Number of Rows 1
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Insulation Height 0.689 17.50mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.098 2.50mm
Insulation Color Natural
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.157 4.00mm
Overall Contact Length 0.610 15.50mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
