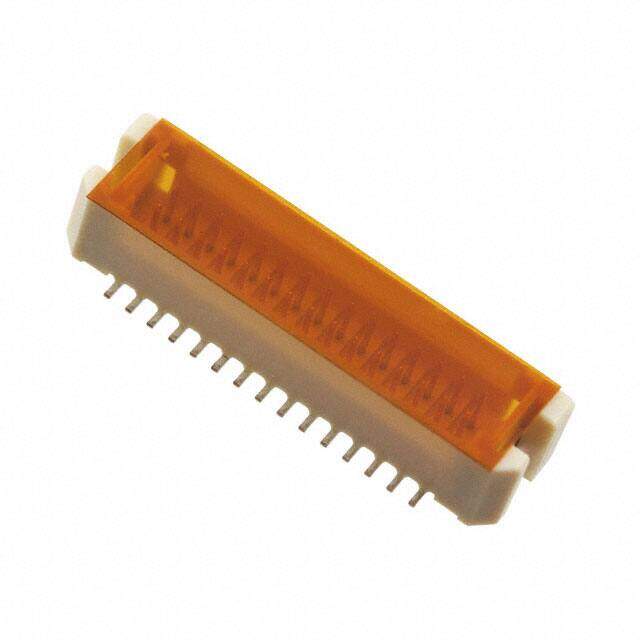

0535053071
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER DUAL VERT 30CKT SMD
PDF
/
Inventory: 8629
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 39.4μin 1.00μm
Contact Finish Thickness - Mating 78.7μin 2.00μm
Technical
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.055 (1.40mm)
Pitch - Mating 0.049 1.25mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.191 4.85mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Number of Positions 30
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Guide, Pick and Place, Solder Retention
Series Pico-Gold 53505
Packaging Tape & Reel (TR)
Physical
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
