0533981071
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

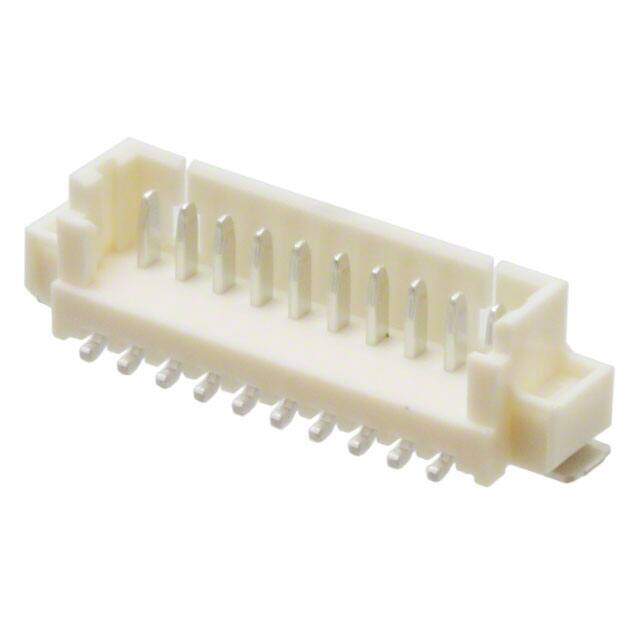

1.25mm (.049") Pitch PicoBlade Header, Surface Mount, Vertical, Lead-free, 10 Circuits
PDF
/
Buying Options
Total Price: USD $1.1
Unit Price: USD $1.1
≥1 USD $1.1
≥10 USD $0.9108
≥100 USD $0.759176
Inventory: 5341
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 39.4μin 1.00μm
Technical
UL Flammability Code 94V-0
Shrouding Shrouded - 3 Wall
Insulation Color Natural
Pitch - Mating 0.049 1.25mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.185 4.70mm
Total Number of Contacts 10
Mixed Contacts NO
Contact Type Male Blade
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Detent Lock
Additional Feature POLARIZED
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Solder Retention
JESD-609 Code e3
Series PicoBlade 53398
Packaging Tape & Reel (TR)
Physical
Insulation Material Polyamide (PA), Nylon
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 12 Weeks
