0533980771

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins

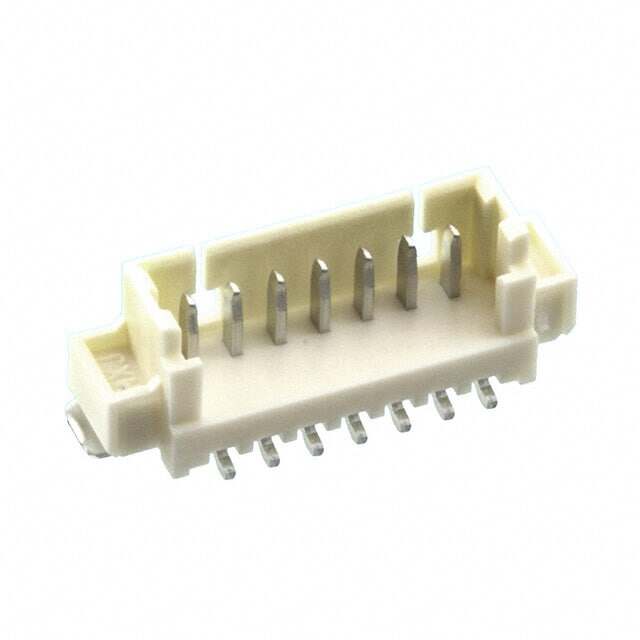

Description 1.25mm (.049") Pitch PicoBlade Header, Surface Mount, Vertical, Lead-free, 7 Circuits
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.9064
≥1 USD $0.9064
≥10 USD $0.748
≥100 USD $0.623216
Inventory: 8814
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating 39.4μin 1.00μm

Technical

UL Flammability Code 94V-0
Shrouding Shrouded - 3 Wall
Insulation Color Natural
Pitch - Mating 0.049 1.25mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.185 4.70mm
Total Number of Contacts 7
Mixed Contacts NO
Contact Type Male Blade
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Detent Lock
Additional Feature POLARIZED
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 7
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Solder Retention
JESD-609 Code e3
Series PicoBlade 53398
Packaging Tape & Reel (TR)

Physical

Insulation Material Polyamide (PA), Nylon
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 12 Weeks
