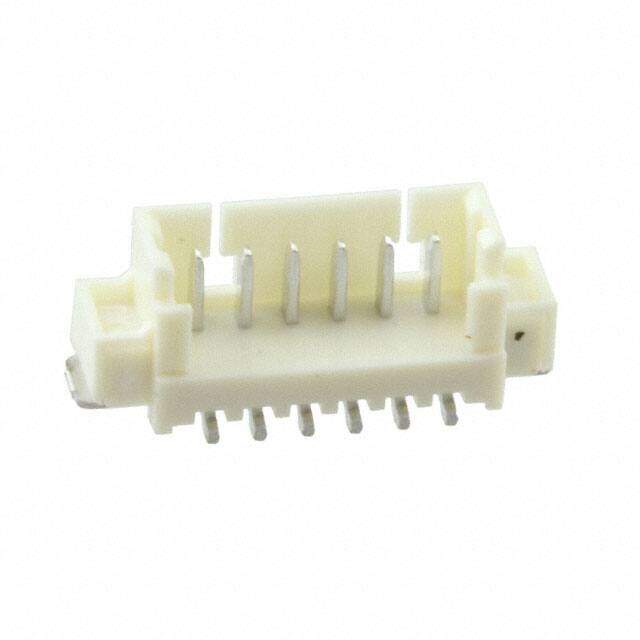

0533980667
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
125 WTB WAFER ASSY 6CKT EMBSTP P
PDF
/
Buying Options
Total Price: USD $1.44
Unit Price: USD $1.4432
≥1 USD $1.4432
≥10 USD $1.23024
≥100 USD $1.016136
Inventory: 348
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Rectangular
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Packaging Tape & Reel (TR)
Series PicoBlade 53398
Feature Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Natural
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Fastening Type Detent Lock
Contact Finish - Mating Tin
Contact Type Male Blade
Pitch 1.25mm
Orientation Straight
Depth 5.1mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.049 1.25mm
Insulation Color Natural
Shrouding Shrouded - 3 Wall
Number of Contacts 6
Contact Finish - Post Tin
Contact Resistance 20mOhm
Max Voltage Rating (AC) 125V
Dimensions
Length 12.65mm
Contact Finish Thickness - Post 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
