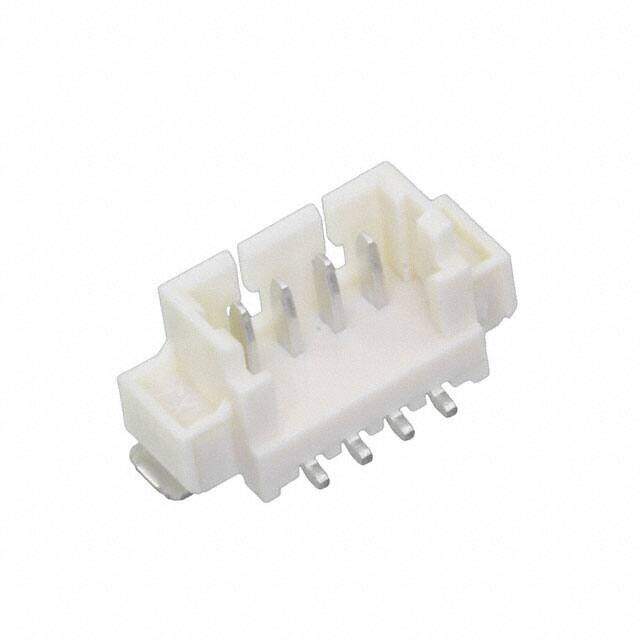

0533980471
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Header Connector, pcb Mount, recept, 4 Contacts, pin, 0.049 Pitch, surface Mount Terminal, locking
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.6952
≥1 USD $0.6952
≥10 USD $0.57816
≥100 USD $0.481536
Inventory: 33570
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Rectangular
Insulation Material Polyamide (PA), Nylon
Technical
Packaging Tape & Reel (TR)
Series PicoBlade 53398
JESD-609 Code e3
Feature Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Additional Feature POLARIZED
Fastening Type Detent Lock
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Blade
Mixed Contacts NO
Total Number of Contacts 4
Insulation Height 0.185 4.70mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.049 1.25mm
Insulation Color Natural
Shrouding Shrouded - 3 Wall
Dimensions
Contact Finish Thickness - Mating 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
