0533751110
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

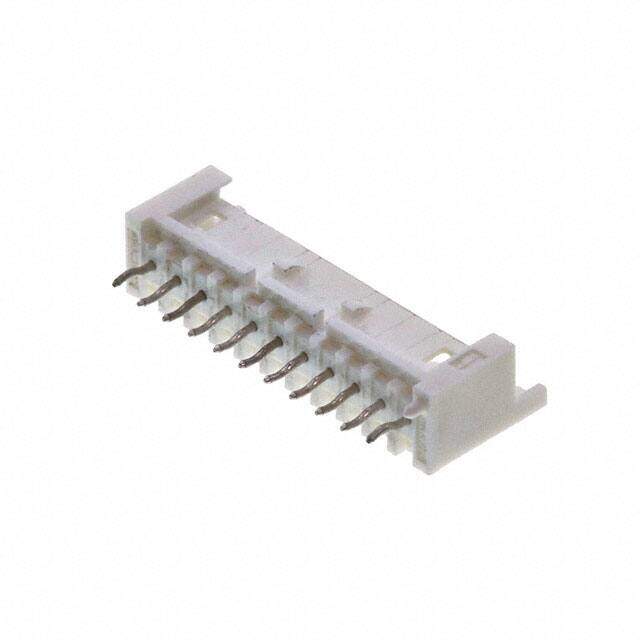

MOLEX 53375-1110Wire-To-Board Connector, Through Hole, Header, 11 Contacts, 3.4 mm, Tin Plated Contacts
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.88
≥1 USD $0.88
≥10 USD $0.73128
≥100 USD $0.609224
≥500 USD $0.487344
≥1000 USD $0.42643
≥3000 USD $0.405108
Inventory: 33238
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polybutylene Terephthalate (PBTP), Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series Mini-Lock 53375
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header
Number of Positions 11
Applications General Purpose, Industrial
Number of Rows 1
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Insulation Height 0.453 11.50mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.098 2.50mm
Insulation Color White
Contact Length - Post 0.134 3.40mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.157 4.00mm
Dimensions
Contact Finish Thickness - Mating 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
