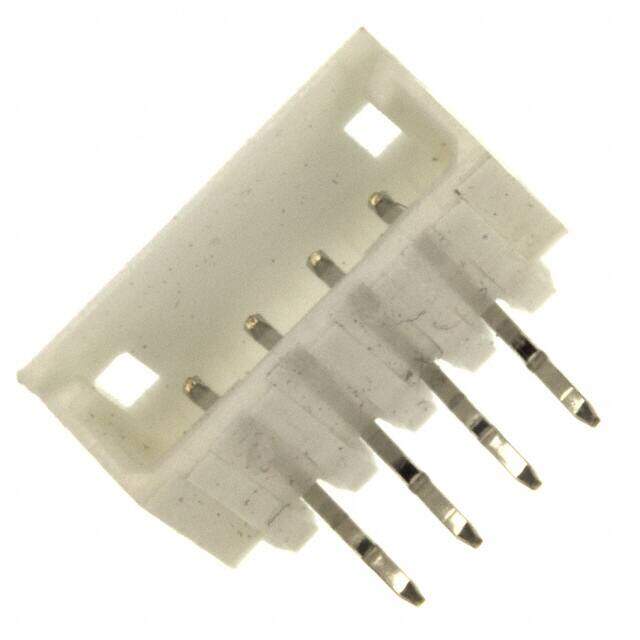

0533250460
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 4POS 2MM
PDF
/
Inventory: 3167
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Packaging Tray
Series Mi II 53325
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 4
Number of Rows 1
Fastening Type Detent Lock
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Terminal Pitch 2mm
Insulation Height 0.191 4.85mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Natural
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.136 3.45mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
