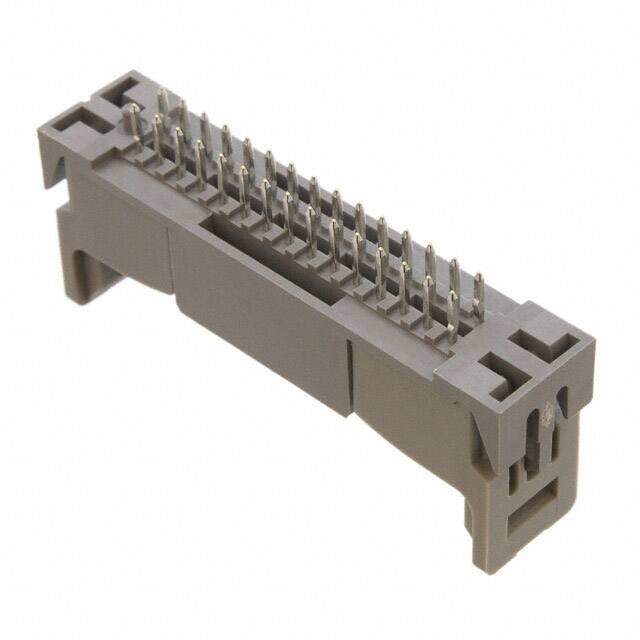

0533143065
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Ejector Header HDR 30 POS 2mm Solder ST Thru-Hole Mi II? Tray
PDF
/
Buying Options
Total Price: USD $13.71
Unit Price: USD $13.7104
≥1 USD $13.7104
≥10 USD $12.14928
Inventory: 111
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Technical
Packaging Tray
Series Mi II 53314
JESD-609 Code e3
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 30
Number of Rows 2
HTS Code 8536.69.40.40
Fastening Type Latch Lock/Eject Hooks
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Gray
Row Spacing - Mating 0.098 (2.50mm)
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness - Mating 40.0μin 1.02μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
