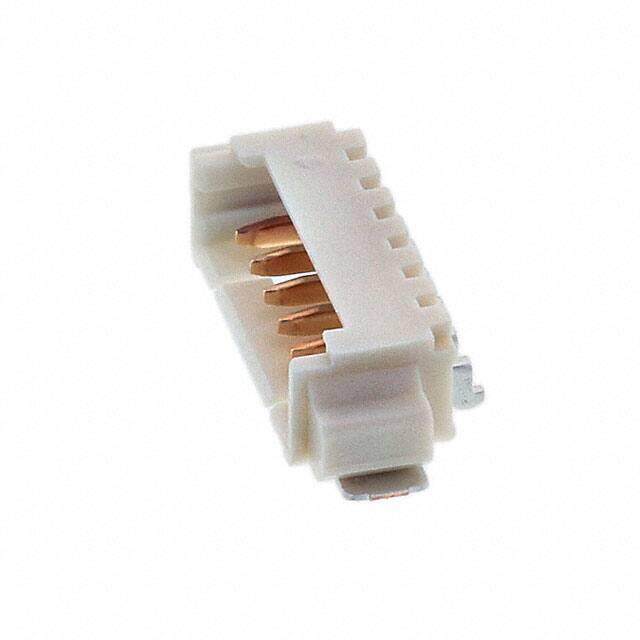

0532617006
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Cross Referenced to MOLEX - Part MOL53261-7006
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9856
≥1 USD $0.9856
≥10 USD $0.84128
≥100 USD $0.695288
Inventory: 17904
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 39.4μin 1.00μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Insulation Color Natural
Pitch - Mating 0.049 1.25mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.134 3.40mm
Total Number of Contacts 6
Current Rating (Amps) 1A per Contact
Mixed Contacts NO
Contact Type Male Blade
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Detent Lock
Voltage - Rated 125VAC/DC
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 6
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series PicoBlade 53261
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Insulation Material Polyamide (PA), Nylon
Contact Shape Rectangular
Mounting Type Surface Mount, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 14 Weeks
