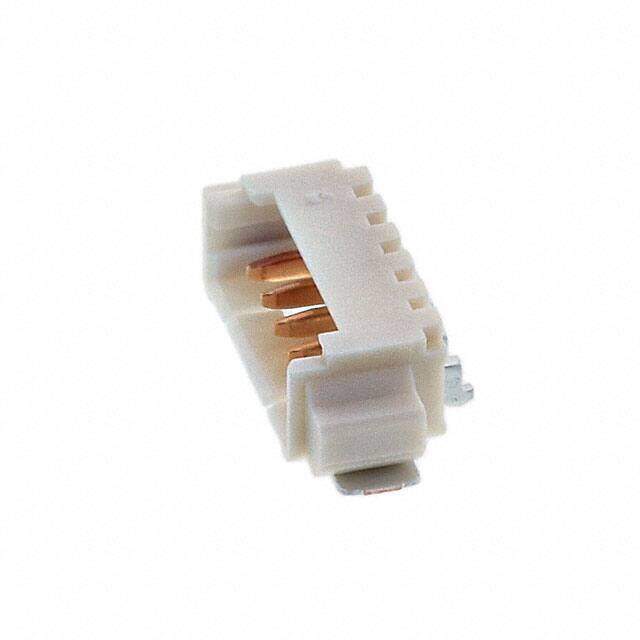

0532617005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD R/A 5POS 1.25MM
PDF
/
Buying Options
Total Price: USD $1.36
Unit Price: USD $1.359735
≥1 USD $1.359735
≥10 USD $1.282771
≥100 USD $1.210162
≥500 USD $1.141662
≥1000 USD $1.077035
Inventory: 5200
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Contact Shape Rectangular
Insulation Material Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~85°C
Packaging Cut Tape (CT)
Series PicoBlade 53261
Feature Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 5
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Voltage - Rated 125VAC/DC
Fastening Type Detent Lock
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Blade
Mixed Contacts NO
Current Rating (Amps) 1A per Contact
Total Number of Contacts 5
Ingress Protection IEC IP50
Insulation Height 0.134 3.40mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.049 1.25mm
Insulation Color Natural
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
