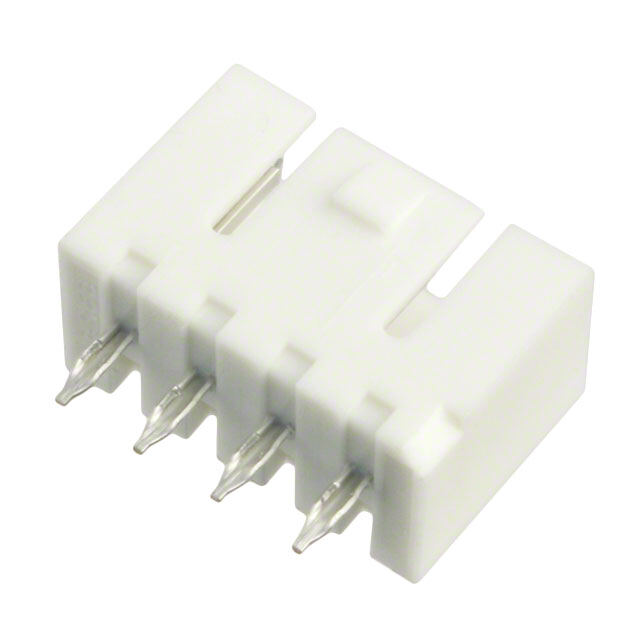

0532583004
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 4POS 3.5MM
PDF
/
Inventory: 8156
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 39.4μin 1.00μm
Length 16.1mm
Technical
Max Voltage Rating (AC) 250V
Number of Circuits 3
Contact Resistance 10mOhm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Insulation Color Natural
Pitch - Mating 0.138 3.50mm
Current Rating 4.5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.413 10.49mm
Orientation Vertical
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Number of Rows 1
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 4
Connector Type Header
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series 53258
Packaging Tray
Physical
Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBTP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Copper, Tin
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 15 Weeks
