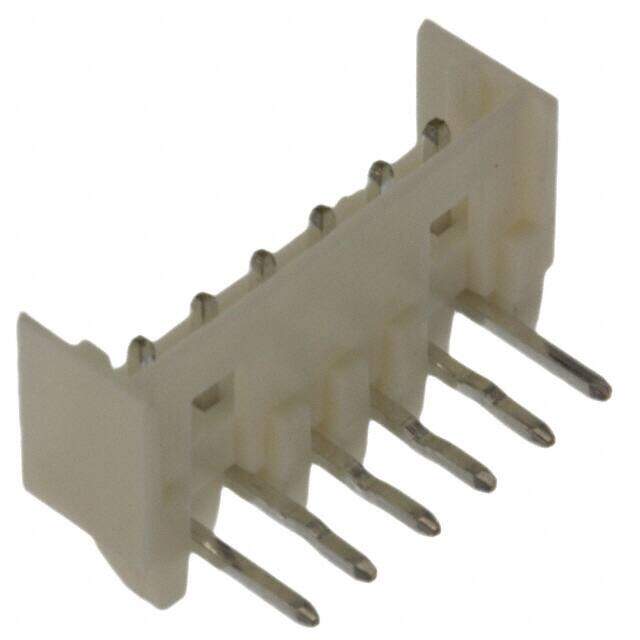

0532540670

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Wire to Board HDR 6 POS 2mm Solder RA Thru-Hole Micro-Latch? Tray
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3256
≥1 USD $0.3256
≥10 USD $0.26488
≥100 USD $0.194594
≥500 USD $0.146802
≥1000 USD $0.132651
≥3000 USD $0.123807
Inventory: 15666
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Brass
Mounting Type Through Hole, Right Angle
Contact Shape Square

Technical

Packaging Tray
Series Micro-Latch 53254
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header
Number of Positions 6
Applications Automotive, General Purpose
Number of Rows 1
Fastening Type Detent Lock
Contact Finish - Mating Tin
Contact Type Male Pin
Insulation Height 0.165 4.20mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 3 Wall
Contact Length - Mating 0.130 3.30mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
