0530480810
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

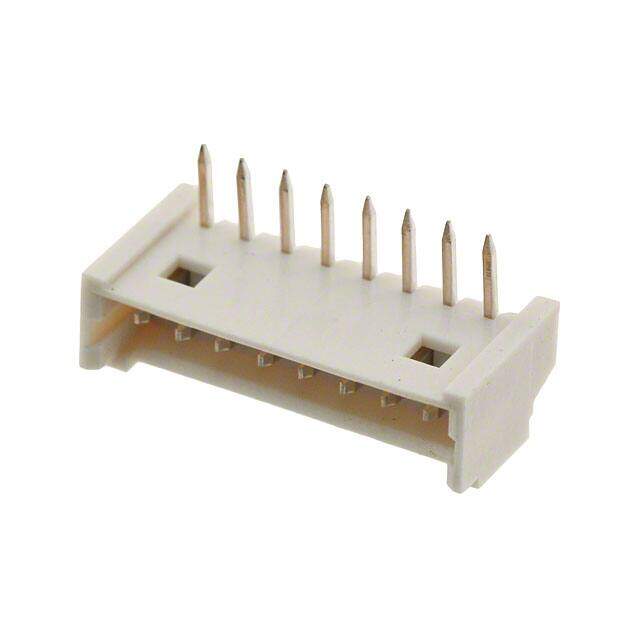

Conn Shrouded Header HDR 8 POS 1.25mm Solder RA Thru-Hole PicoBlade? Tray
PDF
/
Buying Options
Total Price: USD $0.44
Unit Price: USD $0.44
≥1 USD $0.44
≥10 USD $0.36784
≥100 USD $0.286114
≥500 USD $0.239914
Inventory: 69356
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 39.4μin 1.00μm
Technical
Dielectric Withstanding Voltage 350VAC V
Mating Contact Pitch 0.049 inch
Contact Resistance 20mOhm
Number Of PCB Rows 1
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.091 2.30mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.049 1.25mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.138 3.50mm
Current Rating (Amps) 1A per Contact
Contact Type Male Blade
Contact Finish - Mating Tin
Fastening Type Detent Lock
Voltage - Rated 125VAC/DC
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 8
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PicoBlade 53048
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA), Nylon
Contact Shape Rectangular
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 15 Weeks
