0530480410

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins

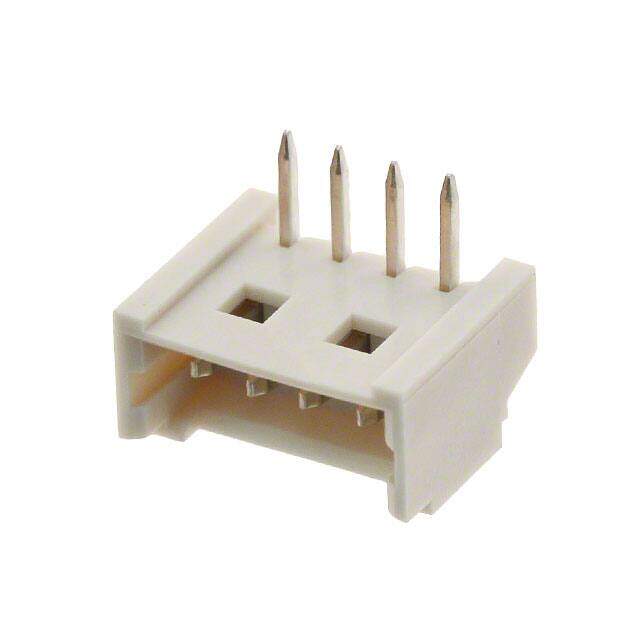

Description CONN HEADER R/A 4POS 1.25MM
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
≥10 USD $0.3212
≥100 USD $0.249594
≥500 USD $0.196073
≥1000 USD $0.172304
≥3000 USD $0.160424
Inventory: 29129
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 39.4μin 1.00μm

Technical

Shrouding Shrouded - 4 Wall
Contact Length - Post 0.091 2.30mm
Insulation Color Natural
Pitch - Mating 0.049 1.25mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.138 3.50mm
Current Rating (Amps) 1A per Contact
Mixed Contacts NO
Contact Type Male Blade
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Detent Lock
Voltage - Rated 125VAC/DC
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 4
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series PicoBlade 53048
Packaging Tray
Operating Temperature -40°C~105°C

Physical

Insulation Material Polyamide (PA), Nylon
Contact Shape Rectangular
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 20 Weeks
