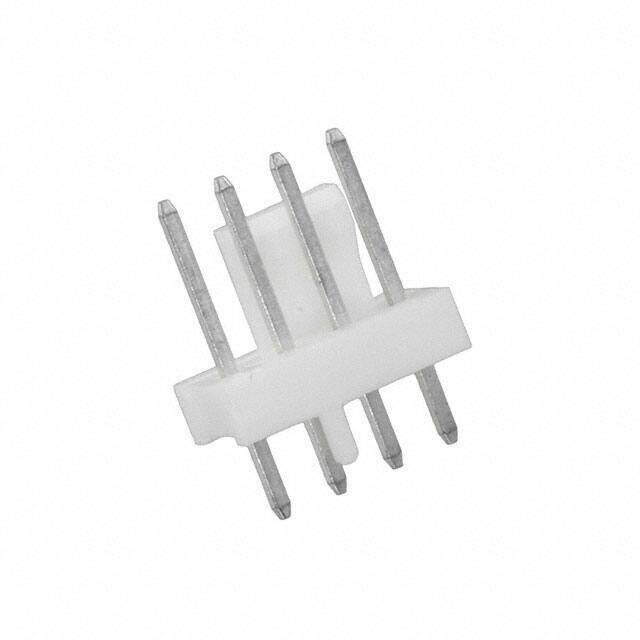

0470531000

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 4POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
≥10 USD $0.41448
≥100 USD $0.32252
≥500 USD $0.253414
≥1000 USD $0.222702
≥3000 USD $0.207337
Inventory: 30248
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating 100.0μin 2.54μm

Technical

Overall Contact Length 0.531 13.50mm
Contact Length - Mating 0.295 7.49mm
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.138 3.50mm
Insulation Color Ivory
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.295 7.50mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Friction Lock
Additional Feature POLARIZED
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 4
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Series KK 47053
Packaging Bulk

Physical

Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 11 Weeks
