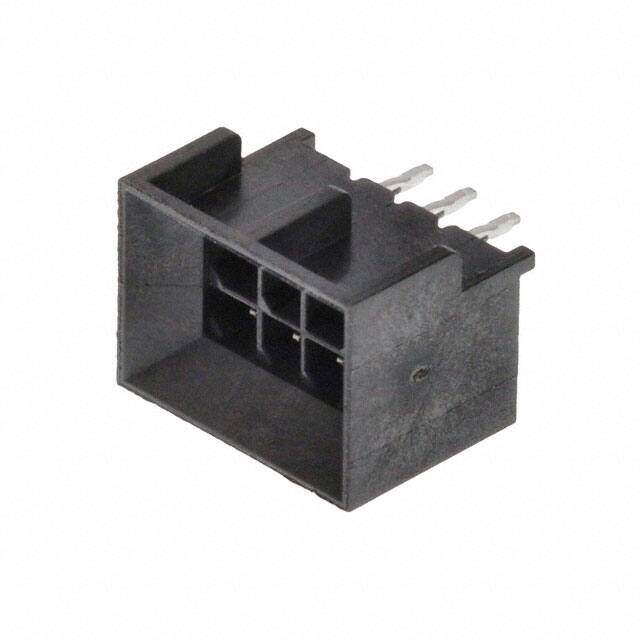

0452800601 image
Favorite
0452800601 image
Favorite

0452800601

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Wire to Board HDR 6 POS 3mm Press Fit ST Thru-Hole Micro-Fit 3.0 BMI CPI? Tray
PDF
/
Buying Options
Total Price: USD $3.19
Unit Price: USD $3.1856
≥1 USD $3.1856
≥10 USD $2.80368
≥100 USD $2.230254
≥500 USD $1.784235
≥1000 USD $1.656785
Inventory: 758
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Copper Alloy
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled

Technical

Packaging Tray
Series Micro-Fit 3.0 BMI CPI 45280
JESD-609 Code e3
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit, Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 6
Applications General Purpose, Medical, Military, Telecommunications
Number of Rows 2
Additional Feature POLARIZED, SHROUDED
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Terminal Pitch 3mm
Insulation Height 0.457 11.60mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Row Spacing - Mating 0.118 (3.00mm)
Contact Length - Post 0.193 4.90mm
Shrouding Shrouded - 4 Wall
UL Flammability Code 94V-0

Dimensions

Contact Finish Thickness - Mating 200.0μin 5.08μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
