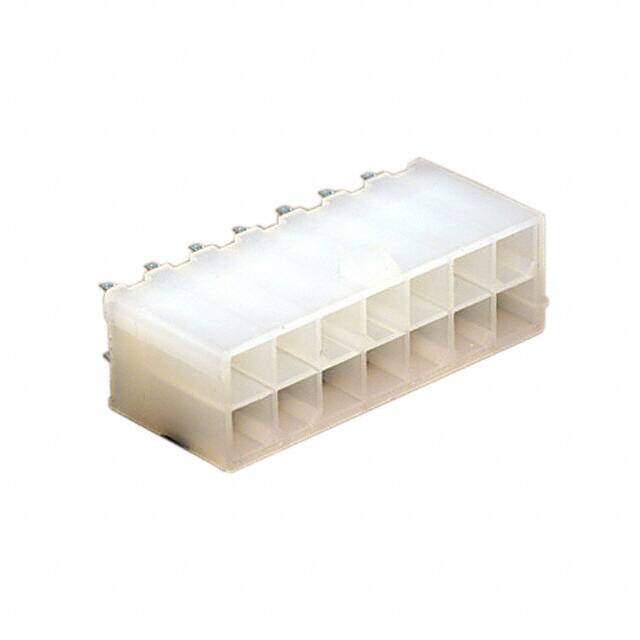

0444721454
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Power HDR 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Mini-Fit? HCS Tray
PDF
/
Buying Options
Total Price: USD $3.65
Unit Price: USD $3.652
≥1 USD $3.652
≥10 USD $3.21376
≥100 USD $2.556514
≥500 USD $2.118292
Inventory: 152
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-2
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Width 9.6mm
Length 30.6mm
Diameter 4.2mm
Technical
Glow Wire Compliant Non-compliant
Halogen Free Halogen Free
Housing Color Natural
Number of Contacts 14
Lead Pitch 4.2mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Row Spacing - Mating 0.165 (4.20mm)
Pitch - Mating 0.165 4.20mm
Current Rating 9A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.504 12.80mm
Orientation Vertical
Contact Type Male Pin
Contact Finish - Mating Tin
Voltage - Rated DC 600V
Fastening Type Locking Ramp
Voltage - Rated 600V
Gender Male
Number of Rows 2
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Mini-Fit HCS 44472
Packaging Tray
Physical
Housing Material Nylon
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
