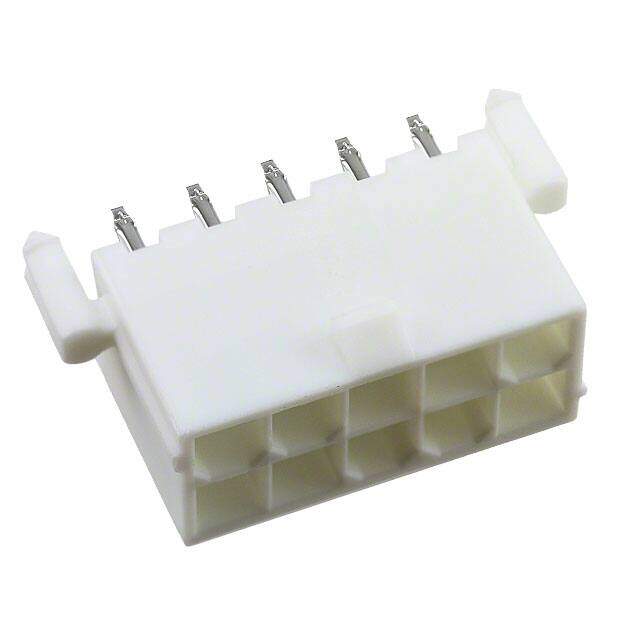

0444721053
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 10POS 4.2MM
PDF
/
Buying Options
Total Price: USD $2.25
Unit Price: USD $2.2528
≥1 USD $2.2528
≥10 USD $1.91928
≥100 USD $1.585214
≥500 USD $1.251474
≥1000 USD $1.109645
Inventory: 769
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Glow Wire Compliant Non-compliant
Insulation Resistance 1GOhm
Lead Length 3.5mm
Contact Gender Male
Number of Contacts 10
Lead Pitch 4.2mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Row Spacing - Mating 0.165 (4.20mm)
Insulation Color Natural
Pitch - Mating 0.165 4.20mm
Current Rating 10A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.504 12.80mm
Orientation Vertical
Contact Type Male Pin
Contact Finish - Mating Tin
Voltage - Rated DC 600V
Fastening Type Locking Ramp
Voltage - Rated 600V
Number of Rows 2
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Color White
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series Mini-Fit HCS 44472
Packaging Tray
Physical
Housing Material Nylon
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
