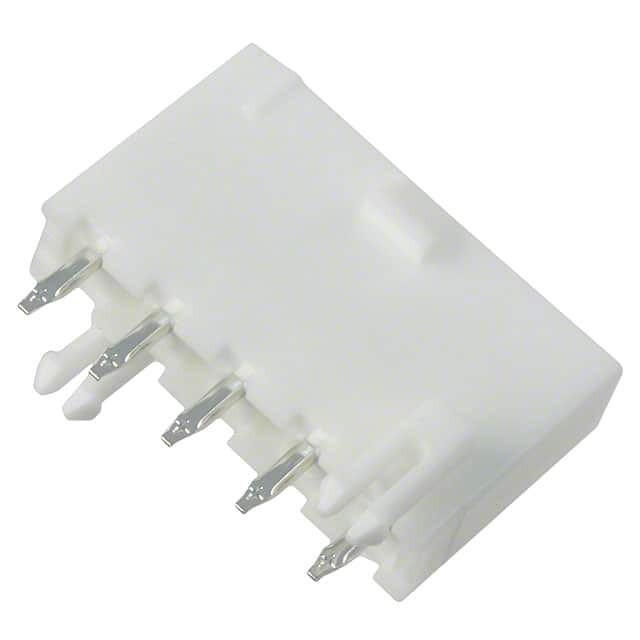

0444720502
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
MINIFIT HEADER SR V/PEGS 5CKT
PDF
/
Inventory: 9804
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 22.2mm
Technical
Number of Circuits 4
Insulation Resistance 1GOhm
Empty Shell NO
Contact Finish - Post Tin
Lead Pitch 4.2mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Insulation Color Natural
Pitch - Mating 0.165 4.20mm
Current Rating 11A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.504 12.80mm
Orientation Vertical
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 600V
Fastening Type Locking Ramp
Gender Receptacle
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 5
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Board Lock
JESD-609 Code e3
Series Mini-Fit HCS 44472
Packaging Tray
Physical
Housing Material Nylon
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
