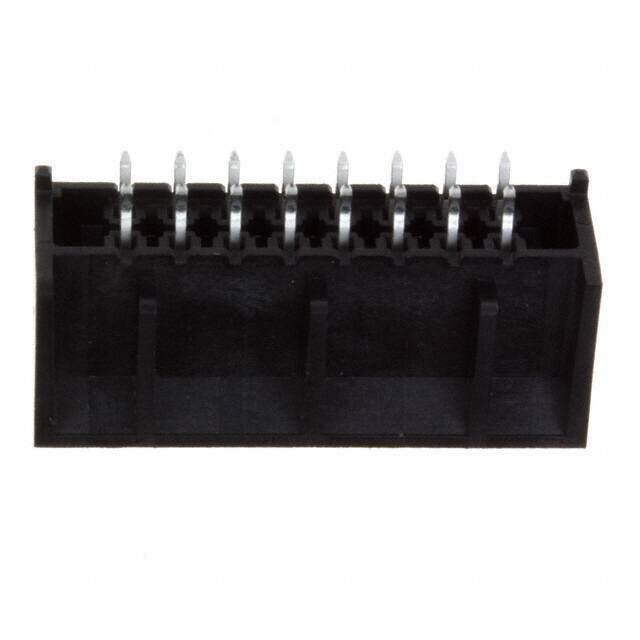

0444321602
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Wire to Board HDR 16 POS 3mm Solder ST Thru-Hole Micro-Fit 3.0 BMI? Tray
PDF
/
Buying Options
Total Price: USD $3.04
Unit Price: USD $3.0448
≥1 USD $3.0448
≥10 USD $2.67696
≥100 USD $2.1296
≥500 USD $1.764576
≥1000 USD $1.582029
Inventory: 1754
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
UL Flammability Code 94V-0
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Row Spacing - Mating 0.118 (3.00mm)
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.457 11.60mm
Terminal Pitch 3mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Applications General Purpose, Medical, Military, Telecommunications
Number of Positions 16
Connector Type Header
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Series Micro-Fit 3.0 BMI 44432
Packaging Tray
Physical
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 13 Weeks
