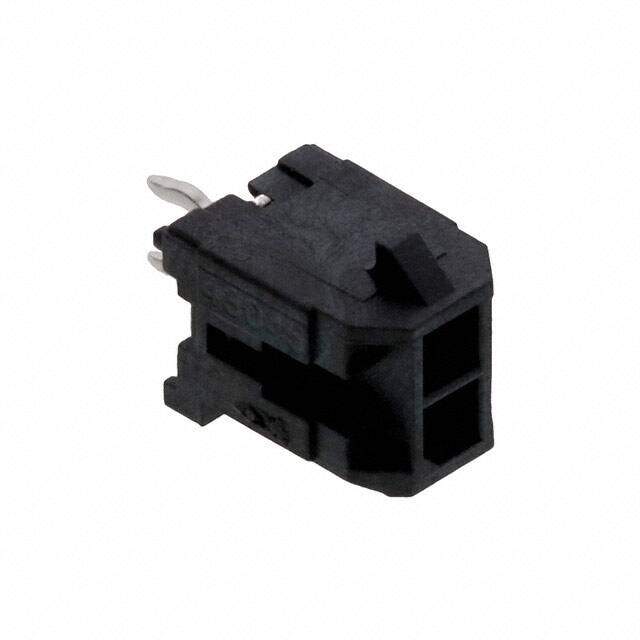

0440670201
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Power HDR 2 POS 3mm Solder ST Thru-Hole 2 Terminal 1 Port Micro-Fit 3.0? Tray
PDF
/
Buying Options
Total Price: USD $0.45
Unit Price: USD $0.4488
≥1 USD $0.4488
≥10 USD $0.37488
≥100 USD $0.3124
≥500 USD $0.275
Inventory: 2154
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Packaging Tray
Series Micro-Fit 3.0 44067
JESD-609 Code e3
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header
Number of Positions 2
Applications General Purpose, Medical, Military, Telecommunications
Number of Rows 2
Fastening Type Locking Ramp
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 0.390 9.91mm
Style Board to Cable/Wire
Number of Positions Loaded All
Insulation Color Black
Row Spacing - Mating 0.118 (3.00mm)
Contact Length - Post 0.158 4.01mm
Shrouding Shrouded - 4 Wall
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Stack Height (Mating) 17.27mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
