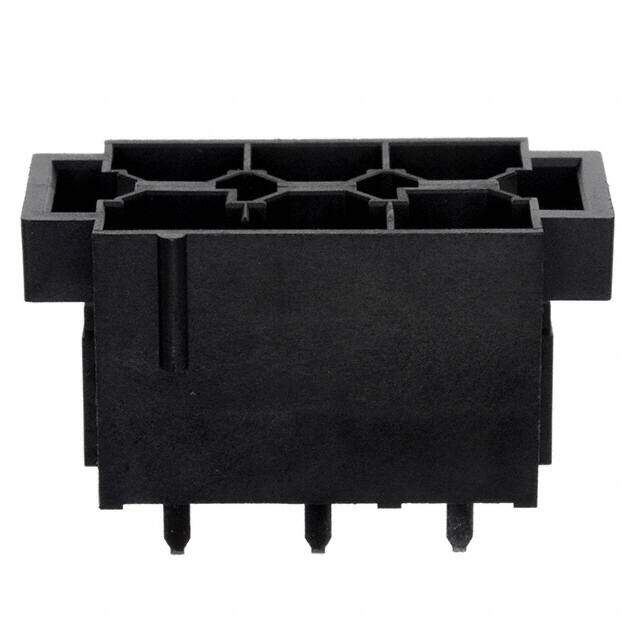

0439151101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Power HDR 6 POS 10mm Solder ST Thru-Hole 6 Terminal 1 Port Mini-Fit Sr? Tray
PDF
/
Inventory: 9210
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Insulation Color Black
Pitch - Mating 0.394 10.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.827 21.00mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Holder
Number of Rows 2
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Positions 6
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Guide
Series Mini-Fit Sr 43915
Packaging Tray
Physical
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Shape Rectangular
Mounting Type Through Hole
Contact Material Copper Zirconium Alloy
