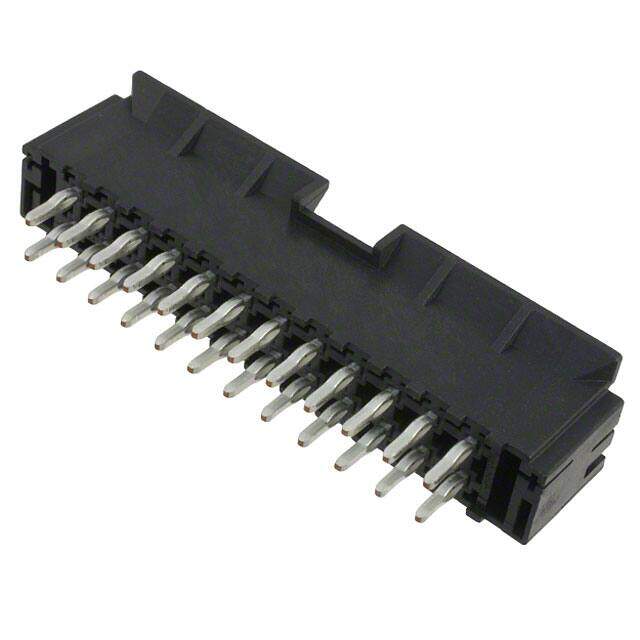

0438790043
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 24POS 4.2MM
PDF
/
Inventory: 4191
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Empty Shell NO
UL Flammability Code 94V-0
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.229 5.82mm
Row Spacing - Mating 0.165 (4.20mm)
Insulation Color Black
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.587 14.91mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Holder
Additional Feature POLARIZED
Number of Rows 2
Applications General Purpose, Industrial, Medical, Telecommunications
Number of Positions 24
Connector Type Header
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series Mini-Fit BMI/CPI 43879
Packaging Tray
Physical
Shell Material POLYETHYLENE
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
