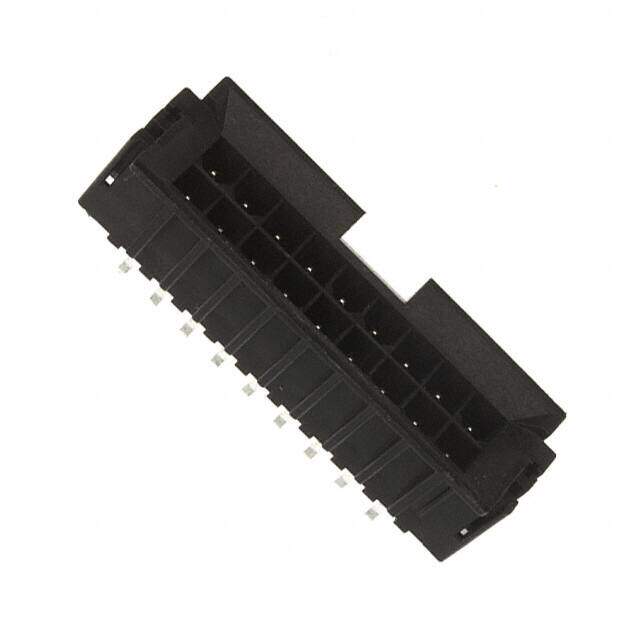

0438790029

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Power HDR 18 POS 4.2mm Press Fit ST Thru-Hole 18 Terminal 1 Port Mini-Fit? BMI Tray
PDF
/
Buying Options
Total Price: USD $14
Unit Price: USD $14.0008
≥1 USD $14.0008
≥10 USD $12.41064
≥100 USD $9.86458
≥500 USD $8.464482
Inventory: 228
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm

Technical

Empty Shell NO
UL Flammability Code 94V-0
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.246 6.25mm
Row Spacing - Mating 0.165 (4.20mm)
Insulation Color Black
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.587 14.91mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature POLARIZED
Number of Rows 2
Applications General Purpose, Industrial, Medical, Telecommunications
Number of Positions 18
Connector Type Header
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Mini-Fit BMI/CPI 43879
Packaging Tray

Physical

Shell Material POLYETHYLENE
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 6 Weeks
