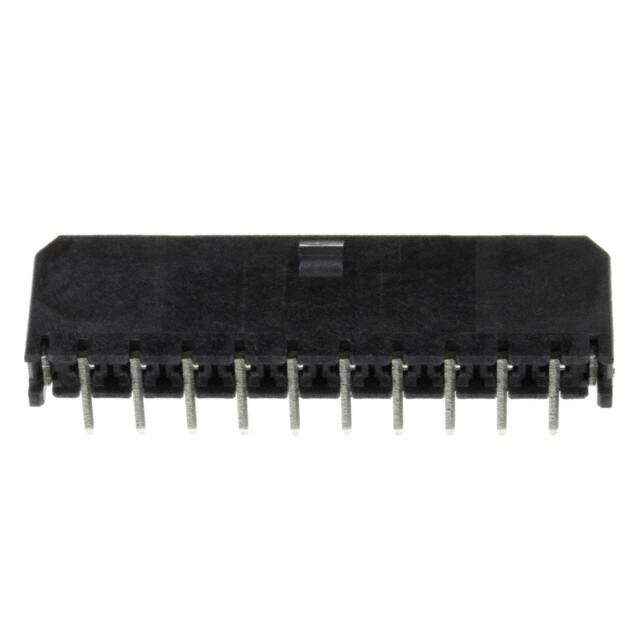

0436501003
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Power HDR 10 POS 3mm Solder RA Thru-Hole 10 Terminal 1 Port Tray
PDF
/
Buying Options
Total Price: USD $2.89
Unit Price: USD $2.8864
≥1 USD $2.8864
≥10 USD $2.53792
≥100 USD $2.01894
≥500 USD $1.672801
≥1000 USD $1.499749
Inventory: 199
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 60.0μin 1.52μm
Technical
Empty Shell NO
UL Flammability Code 94V-0
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.125 3.18mm
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.172 4.37mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Locking Ramp
HTS Code 8536.69.40.30
Additional Feature MICRO-FIT 3.0, POLARIZED, SHROUDED
Number of Rows 1
Applications General Purpose, Medical, Military, Telecommunications
Number of Positions 10
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
JESD-609 Code e3
Series Micro-Fit 3.0 43650
Packaging Tray
Physical
Shell Material POLYETHYLENE
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
