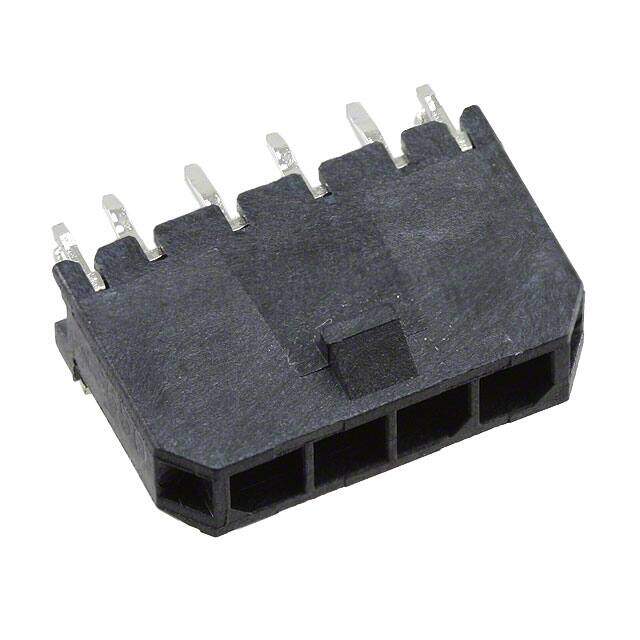

0436500420 image
Favorite
0436500420 image
Favorite

0436500420

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Power HDR 4 POS 3mm Solder ST Thru-Hole 4 Terminal 1 Port Micro-Fit 3.0? Tray
PDF
/
Buying Options
Total Price: USD $2
Unit Price: USD $1.9976
≥1 USD $1.9976
≥10 USD $1.70104
≥100 USD $1.40514
≥500 USD $1.072377
≥1000 USD $0.983629
Inventory: 2467
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Stack Height (Mating) 17.56mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm

Technical

Empty Shell NO
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.125 3.18mm
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.390 9.91mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Additional Feature MICRO-FIT 3.0, POLARIZED, SHROUDED
Number of Rows 1
Applications General Purpose, Medical, Military, Telecommunications
Number of Positions 4
Connector Type Header
ECCN Code EAR99
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
JESD-609 Code e3
Series Micro-Fit 3.0 43650
Packaging Tray

Physical

Shell Material POLYETHYLENE
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass

Supply Chain

Factory Lead Time 6 Weeks
