0436500414
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

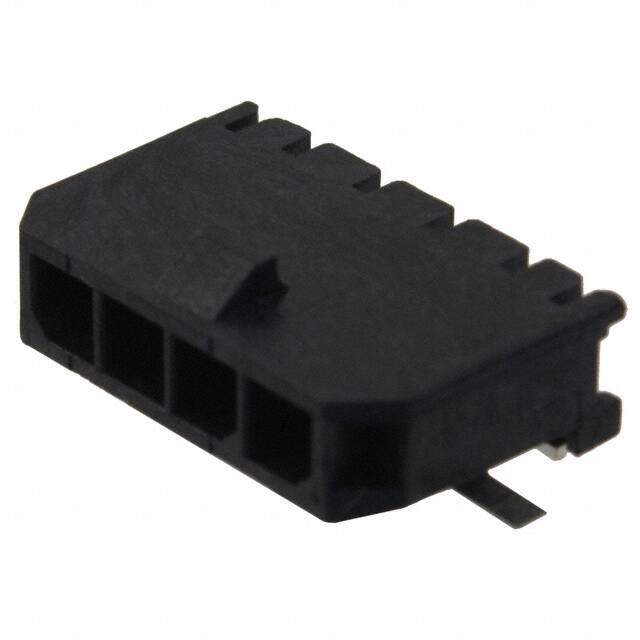

MICROFIT 3.0 SR RA SMT GOLD 4CKT
PDF
/
Buying Options
Total Price: USD $3.63
Unit Price: USD $3.6344
≥1 USD $3.6344
≥10 USD $3.19616
≥100 USD $2.542496
Inventory: 4806
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Empty Shell NO
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.172 4.37mm
Total Number of Contacts 4
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Additional Feature MICRO-FIT 3.0, POLARIZED, SHROUDED
Number of Rows 1
Applications General Purpose, Medical, Military, Telecommunications
Number of Positions 4
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series Micro-Fit 3.0 43650
Packaging Tape & Reel (TR)
Physical
Shell Material POLYETHYLENE
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Contact Material Brass
Supply Chain
Factory Lead Time 6 Weeks
