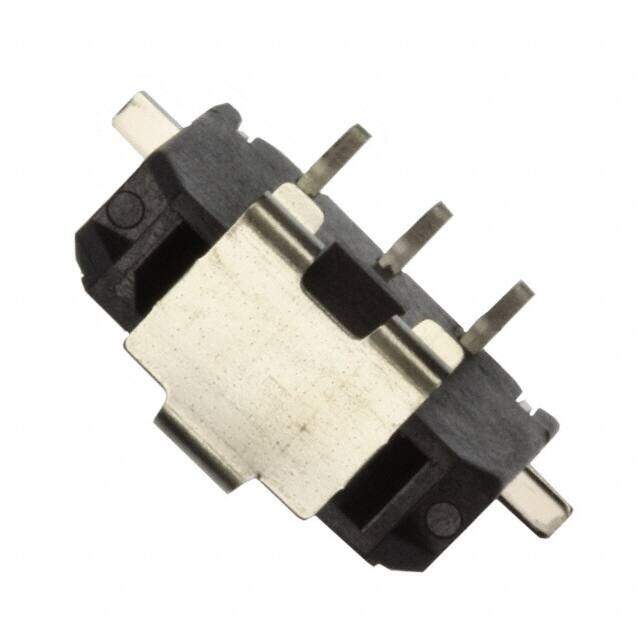

0436500325 image
Favorite
0436500325 image
Favorite

0436500325

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER 3POS 3MM SMD GOLD
PDF
/
Buying Options
Total Price: USD $2.38
Unit Price: USD $2.3848
≥1 USD $2.3848
≥10 USD $2.09968
≥100 USD $1.680096
Inventory: 12062
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Stack Height (Mating) 17.56mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm

Technical

Empty Shell NO
UL Flammability Code 94V-0
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.390 9.91mm
Total Number of Contacts 3
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Number of Rows 1
Applications General Purpose, Medical, Military, Telecommunications
Number of Positions 3
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Solder Retention
Series Micro-Fit 3.0 43650
Packaging Tape & Reel (TR)

Physical

Shell Material POLYETHYLENE
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Contact Material Brass

Supply Chain

Factory Lead Time 6 Weeks
