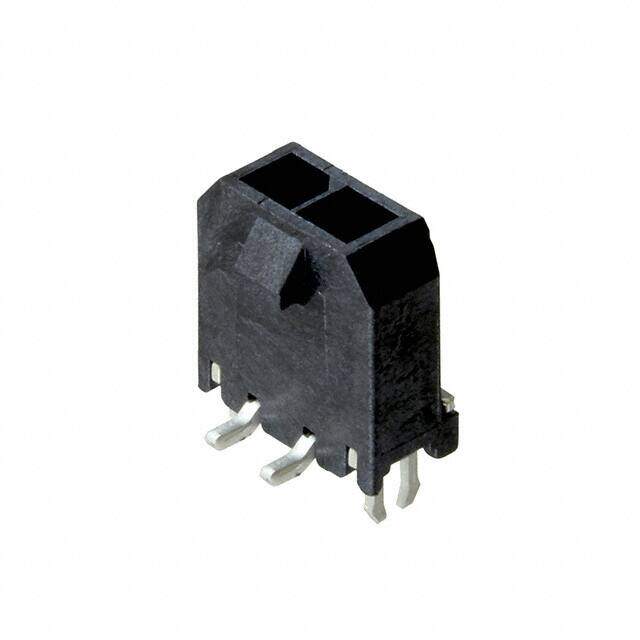

0436500222
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 2POS 3MM
PDF
/
Buying Options
Total Price: USD $2.44
Unit Price: USD $2.4376
≥1 USD $2.4376
≥10 USD $2.14544
≥100 USD $1.706408
Inventory: 2455
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Brass
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Shell Material POLYETHYLENE
Technical
Packaging Tape & Reel (TR)
Series Micro-Fit 3.0 43650
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 2
Applications General Purpose, Medical, Military, Telecommunications
Number of Rows 1
Additional Feature MICRO-FIT 3.0, POLARIZED, SHROUDED
HTS Code 8536.69.40.30
Fastening Type Locking Ramp
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Total Number of Contacts 2
Insulation Height 0.390 9.91mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
UL Flammability Code 94V-0
Empty Shell NO
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Stack Height (Mating) 17.56mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
