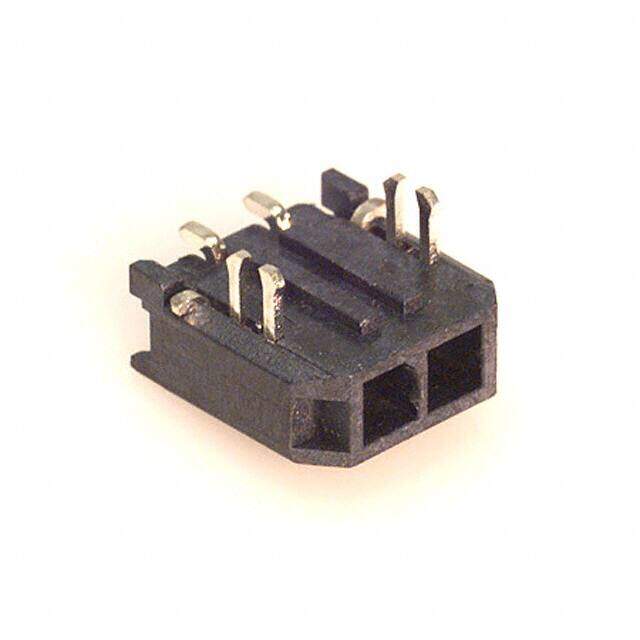

0436500210

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER 2POS R/A W/CLIP SMD
PDF
/
Buying Options
Total Price: USD $1.6
Unit Price: USD $1.6016
≥1 USD $1.6016
≥10 USD $1.36136
≥100 USD $1.124904
Inventory: 38785
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Contact Material Brass
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Shell Material POLYETHYLENE

Technical

Packaging Cut Tape (CT)
Series Micro-Fit 3.0 43650
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 2
Applications General Purpose, Medical, Military, Telecommunications
Number of Rows 1
Additional Feature MICRO-FIT 3.0, POLARIZED, SHROUDED
HTS Code 8536.69.40.30
Fastening Type Locking Ramp
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Total Number of Contacts 2
Insulation Height 0.172 4.37mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
UL Flammability Code 94V-0
Empty Shell NO

Dimensions

Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
