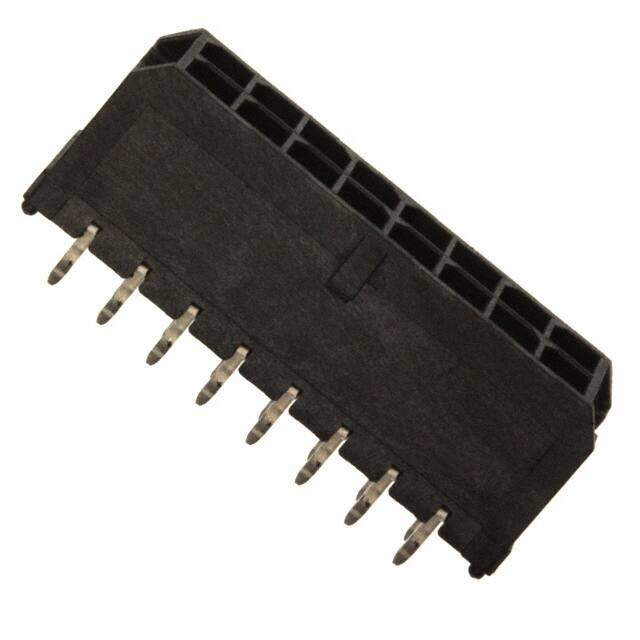

0430451614

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Power HDR 16 POS 3mm Solder ST Thru-Hole 16 Terminal 1 Port Micro-Fit 3.0? Tray
PDF
/
Buying Options
Total Price: USD $5.77
Unit Price: USD $5.7728
≥1 USD $5.7728
≥10 USD $5.05296
≥100 USD $4.09046
≥500 USD $3.296436
Inventory: 1101
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled

Technical

Packaging Tray
Series Micro-Fit 3.0 43045
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header
Number of Positions 16
Applications General Purpose, Medical, Military, Telecommunications
Number of Rows 2
Voltage - Rated 600V
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 8A
Insulation Height 0.390 9.91mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Row Spacing - Mating 0.118 (3.00mm)
Contact Length - Post 0.125 3.18mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
