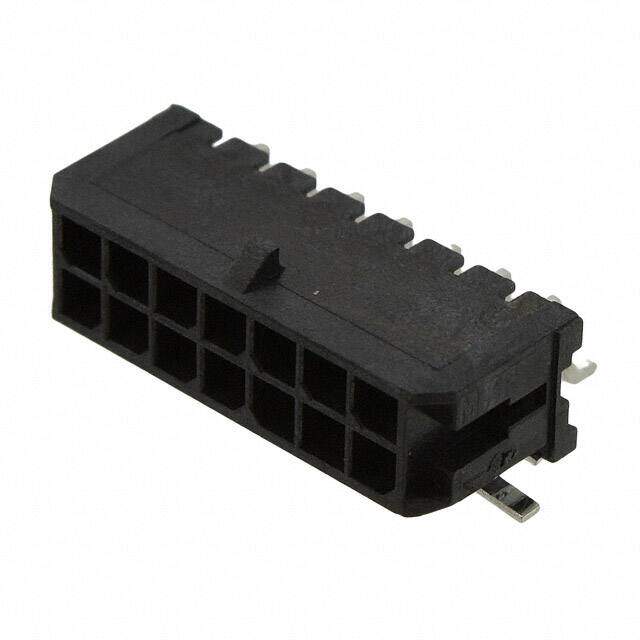

0430451411
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD R/A 14POS 3MM
PDF
/
Buying Options
Total Price: USD $6.25
Unit Price: USD $6.248
≥1 USD $6.248
≥10 USD $5.46392
≥100 USD $4.42332
Inventory: 3385
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Brass
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Shell Material POLYETHYLENE
Technical
Packaging Tape & Reel (TR)
Series Micro-Fit 3.0 43045
Feature Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 14
Applications General Purpose, Medical, Military, Telecommunications
Number of Rows 2
Voltage - Rated 600V
Additional Feature MICRO-FIT 3.0, POLARIZED, SHROUDED
HTS Code 8536.69.40.30
Fastening Type Locking Ramp
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Current Rating (Amps) 8A
Total Number of Contacts 14
Insulation Height 0.290 7.37mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Row Spacing - Mating 0.118 (3.00mm)
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
UL Flammability Code 94V-0
Empty Shell NO
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
