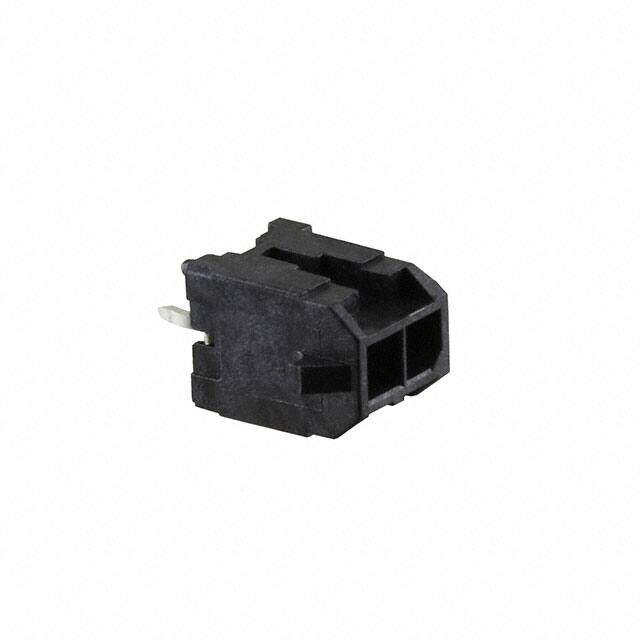

0430450214
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn HDR 2 POS Solder ST Thru-Hole 2 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.2584
≥1 USD $1.2584
≥10 USD $1.06832
≥100 USD $0.88286
≥500 USD $0.650531
≥1000 USD $0.618006
≥3000 USD $0.604067
Inventory: 16743
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Empty Shell NO
UL Flammability Code 94V-0
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.125 3.18mm
Row Spacing - Mating 0.118 (3.00mm)
Insulation Color Black
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.390 9.91mm
Current Rating (Amps) 8A
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Locking Ramp
HTS Code 8536.69.40.30
Voltage - Rated 600V
Applications General Purpose, Medical, Military, Telecommunications
Number of Positions 2
Connector Type Header
ECCN Code EAR99
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
JESD-609 Code e3
Series Micro-Fit 3.0 43045
Packaging Tray
Physical
Shell Material POLYETHYLENE
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
